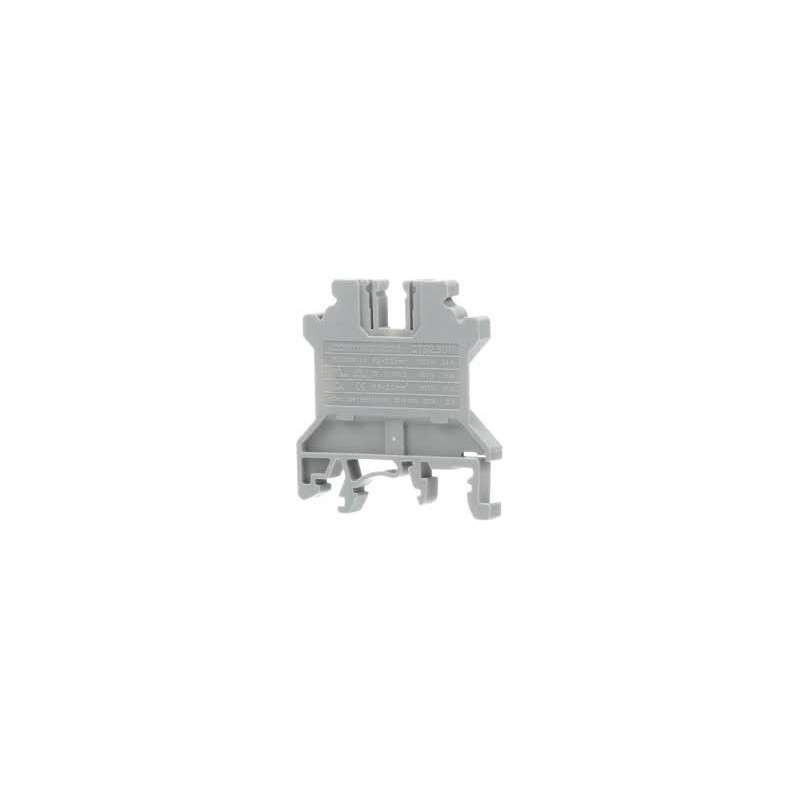

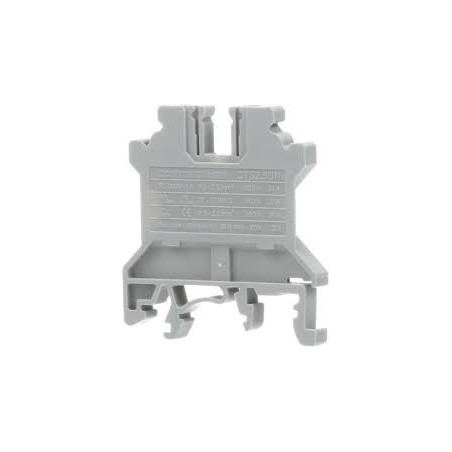

Connectwell CTS2.5UN – 2.5 mm² Screw Clamp Feed-Through Terminal Block
₹14.16
₹14.16 /Unit
Tax included
The Connectwell CTS2.5UN is a compact, high-reliability 2.5 mm² screw clamp feed-through terminal block designed for safe and efficient electrical connections in control panels and automation systems. It supports wires up to 2.5 mm² (14 AWG) and mounts securely on standard DIN 35 mm rails. Made from flame-retardant PA 6.6 with nickel-plated copper current bars, the CTS2.5UN ensures excellent conductivity, mechanical strength, and long-term durability even under vibration. Ideal for OEMs and panel builders, it combines fast installation, superior insulation, and international compliance for modern industrial wiring systems.
Security policy
Delivery policy
Return policy
The Connectwell CTS2.5UN terminal block is an industry-standard 2.5 mm² screw clamp feed-through terminal engineered for dependable electrical connectivity in industrial automation and control applications. It enables quick and secure termination of single-core or stranded wires while ensuring reliable current transfer and insulation integrity.
Built from high-grade PA 6.6 (polyamide) insulating material with a UL 94 V-0 flammability rating, the CTS2.5UN provides excellent dielectric strength and resistance to chemicals, heat, and vibration. The internal current bar is made of electro-tin-plated copper alloy, ensuring low contact resistance and superior corrosion protection.
The terminal features two easily accessible wire entry points, each tightened via a captive steel screw and clamp plate assembly. This design delivers vibration-proof connections suitable for field wiring, automation cabinets, and PLC control systems.
The CTS2.5UN mounts directly on a DIN 35 mm symmetrical rail, compatible with all Connectwell accessories such as end clamps (CA502 / CA702), jumper bars (CAJ2.5 series), partition plates (CTPP2.5), and group marker holders (GMH6-PA).
Complying with international standards IEC 60947-7-1 and UL 1059, this terminal block ensures safe and standardized installation in electrical panels worldwide.
⚙️ Technical Highlights
| Specification | Description |
|---|---|
| Model | CTS2.5UN |
| Manufacturer | Connectwell |
| Type | Feed-Through Terminal Block |
| Connection Type | Screw Clamp |
| Cross-Section Capacity | 0.5 – 2.5 mm² (22 – 14 AWG) |
| Rated Voltage | 800 V |
| Rated Current | 24 A |
| Torque | 0.5 – 0.6 Nm |
| Mounting Type | DIN 35 mm rail |
| Material | PA 6.6 (Polyamide) |
| Current Bar | Tin-plated copper alloy |
| Flammability Rating | UL 94 V-0 |
| Color | Grey (RAL 7035) |
| Operating Temperature | −25 °C to +100 °C |
| Standards | IEC 60947-7-1 / UL 1059 |
| Accessories | CA502 / CA702 End Clamp, EP2.5/4UN End Plate, CAJ2.5 Jumper Bar, GMH6-PA Marker Holder |
| Country of Origin | India |
🔧 Features
-
Screw-clamp connection ensures firm, vibration-resistant wire termination
-
Compact 2.5 mm² design ideal for dense panel layouts
-
High-quality PA 6.6 housing with UL 94 V-0 flame retardance
-
Nickel-plated copper current bar for excellent conductivity
-
Compatible with Connectwell standard accessories
-
Quick DIN 35 mm rail mounting and dismounting
-
Meets IEC 60947-7-1 and UL 1059 standards
