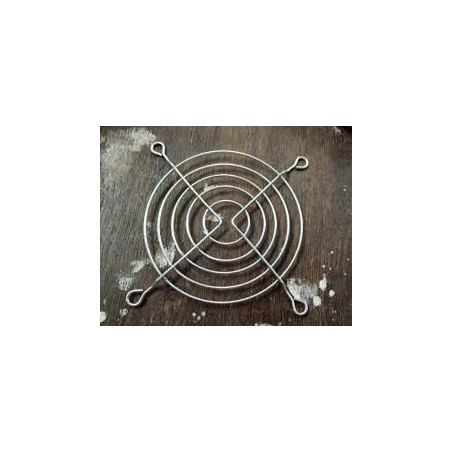

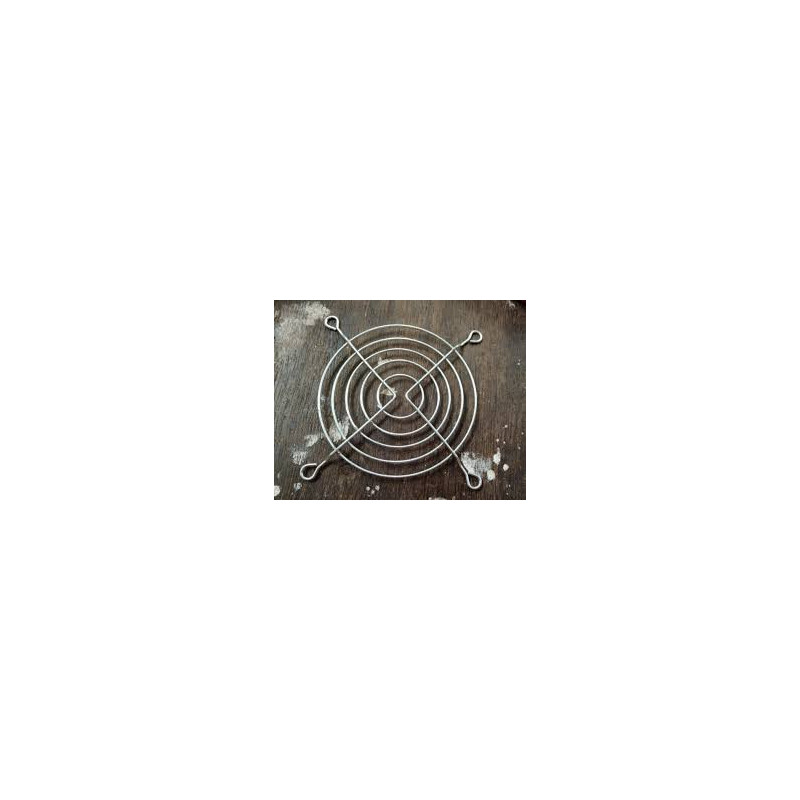

4-Inch Fan Guard / Panel Fan Jali – Steel Wire Protective Grill for Cooling Fans
₹29.50
₹29.50 /Unit
Tax included
The 4-Inch Fan Guard / Panel Fan Jali is a durable protective metal grill designed to cover and safeguard cooling fans used in electrical panels, control cabinets, and equipment enclosures. Made from chrome-plated or zinc-coated steel wire, it prevents accidental contact with fan blades while maintaining unrestricted airflow. The jali fits standard 4-inch (120 mm) axial cooling fans and includes four pre-drilled mounting holes for quick installation. Ideal for industrial panels, power supplies, and automation systems, it provides both safety and ventilation efficiency.
Security policy
Delivery policy
Return policy
The 4-Inch Fan Guard / Panel Fan Jali is an essential safety and ventilation accessory for electrical control panels, industrial enclosures, and electronic equipment. Designed to fit standard 120 mm axial cooling fans, it provides physical protection to both the fan and the operator while ensuring optimal airflow and heat dissipation.
Constructed from high-strength steel wire, the jali features a concentric ring design with radial supports, offering excellent rigidity without obstructing air passage. The nickel-chrome or zinc plating prevents corrosion, making it suitable for harsh industrial and semi-outdoor environments.
The guard has four pre-drilled mounting holes spaced to match the fan’s standard bolt pattern, allowing it to be easily attached using M4 screws or self-tapping fasteners. Once installed, it acts as a barrier against accidental contact with the rotating blades and protects against foreign objects such as tools or wires entering the fan housing.
This 4-inch fan guard complies with general electrical safety and panel manufacturing standards, ensuring safe operation in MCC panels, PLC enclosures, SMPS cabinets, and VFD control systems. It is compatible with most standard panel cooling fans such as 120 × 120 mm 230 V AC or 24 V DC types.
⚙️ Technical Highlights
| Specification | Description |
|---|---|
| Product Type | Fan Guard / Panel Fan Jali |
| Compatible Fan Size | 4 Inch (120 × 120 mm) |
| Material | Mild Steel (MS) or Stainless Steel (as per variant) |
| Finish | Nickel-Chrome / Zinc Plated |
| Outer Diameter | 120 mm ± 2 mm |
| Thickness | 1.2 – 1.6 mm wire (typical) |
| Mounting Hole Distance | 105 ± 1 mm |
| Mounting Type | 4-Hole (M4 compatible) |
| Protection | Prevents contact with fan blades |
| Airflow Obstruction | Minimal (<5%) |
| Temperature Range | −20 °C to +120 °C |
| Country of Origin | India / OEM Imported Component |
🔧 Features
-
Fits standard 4" (120 mm) cooling fans
-
High-strength steel wire construction
-
Chrome / zinc plated for corrosion resistance
-
Easy 4-hole mounting with M4 screws
-
Ensures operator safety and fan protection
-
Provides unobstructed airflow for efficient cooling
-
Suitable for AC and DC fan models
-
Long service life in industrial environments
🏭 Typical Applications
-
Electrical and automation control panels
-
VFD and MCC cabinets
-
PLC and SMPS cooling systems
-
Instrumentation and data loggers
-
Power supply and battery charger enclosures
-
Industrial electronic equipment and test benches
