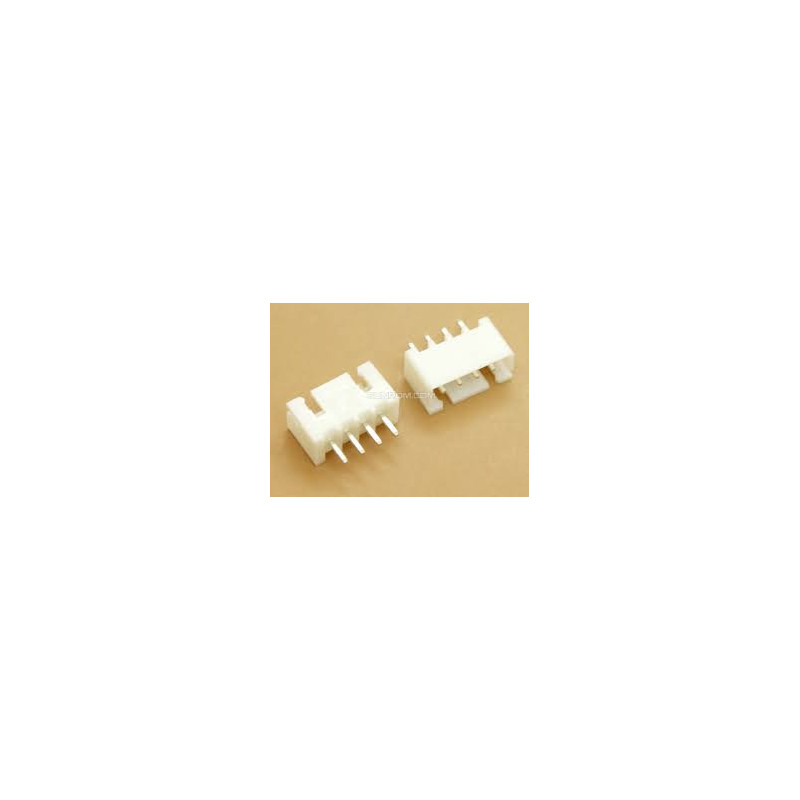

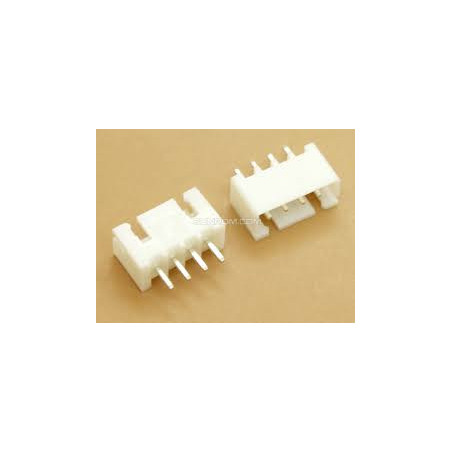

4-Pin JST Connector (Without Wire) – Male/Female Housing & Pin Set
₹5.90
₹5.90 /Unit
Tax included
The 4-Pin JST Connector (Without Wire) is a compact and reliable electrical connector used for board-to-board or board-to-cable connections in electronic circuits. Designed for low-voltage DC applications, this connector ensures secure and polarized mating to prevent reverse connections. It includes both male and female housings with crimp pin terminals, allowing custom wire harness assembly. Ideal for DIY electronics, prototyping, sensor connections, and PCB interfacing, the 4-pin JST connector provides a dependable and easy-to-use interface in a small footprint.
Security policy
Delivery policy
Return policy
The 4-Pin JST Connector (Without Wire) is a versatile and widely used connector system for low-current, low-voltage applications. It is part of the JST (Japan Solderless Terminal) family — known for its precision, compact size, and reliable locking design.
This version includes the male and female housing pair along with loose crimp pins, allowing users to fabricate their own customized wire harnesses for circuit boards, sensors, and modules. Unlike pre-wired connectors, this set offers flexibility to use different wire gauges, colors, or lengths as per project requirements.
The JST 4-pin connector ensures secure mating with a latch-lock mechanism, preventing accidental disconnections due to vibration or handling. Each pin is made from tinned brass or phosphor bronze to ensure excellent electrical conductivity and corrosion resistance. The connector housings are made from high-temperature nylon (PA66) or equivalent plastic, ensuring durability and compatibility with soldering environments.
Commonly used in Arduino projects, robotics, battery packs, sensor modules, LED strips, and IoT devices, this connector type provides reliable electrical contact and mechanical stability. It is compatible with JST-XH / JST-PH series housings depending on pin pitch.
Available in standard pitches such as 2.0 mm (PH series) and 2.54 mm (XH series), the connector supports up to 2–3 A per contact depending on the series and wire used.
⚙️ Technical Highlights
| Specification | Description |
|---|---|
| Type | 4-Pin JST Connector (Without Wire) |
| Connector Style | Male & Female housing with crimp terminals |
| Pin Count | 4 pins |
| Pitch | 2.54 mm (XH Series) |
| Current Rating | Up to 2–3 A |
| Voltage Rating | 100 – 250 V AC/DC |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 1000 MΩ |
| Material (Housing) | Nylon PA66 (flame-retardant) |
| Material (Contacts) | Tinned Brass / Phosphor Bronze |
| Temperature Range | −25 °C to +85 °C |
| Lock Type | Friction or latch-lock |
| Mounting | Cable to PCB / Board connection |
| Country of Origin | China / India (OEM) |
🔧 Features
-
Compact 4-pin JST design for low-voltage connections
-
Male and female housing with crimp pin terminals
-
High-conductivity tinned brass contacts
-
Secure locking mechanism prevents accidental disconnection
-
Customizable wire harness fabrication
-
Available in XH (2.54 mm) series pitch
-
Compatible with Arduino, sensors, and PCB boards
-
Cost-effective and easy to assemble
🏭 Typical Applications
-
PCB and module interconnections
-
IoT and sensor device wiring
-
LED strips and lighting assemblies
-
Battery packs and charger interfaces
-
Robotics and DIY electronics projects
-
Embedded controllers and prototype c
