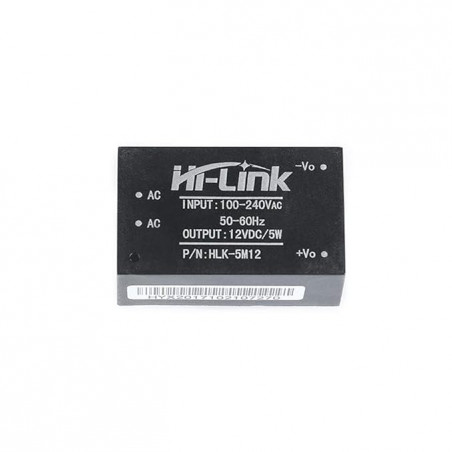

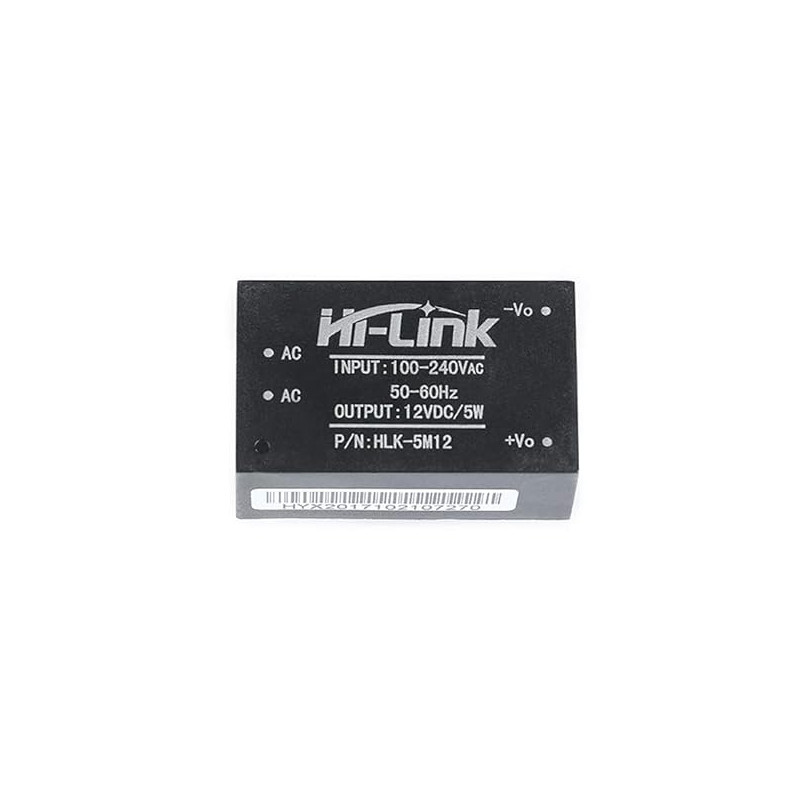

Hi-Link HLK Series Miniature AC-DC Power Module (100 – 240 V AC Input)

₹250.16

₹250.16 /Unit

Tax included

The Hi-Link HLK series is a family of compact encapsulated AC-DC converter modules that convert a wide 100 – 240 V AC mains input directly to regulated low-voltage DC outputs (3.3 V / 5 V / 12 V). These modules are designed for direct PCB mounting and provide safe, isolated power for IoT devices, embedded systems, and home-automation projects.
Featuring high efficiency, low ripple, and reinforced isolation, HLK modules eliminate the need for bulky transformers or external SMPS boards. Their small size, global voltage compatibility, and compliance with CE and UL standards make them ideal for industrial, consumer, and IoT applications.

Quantity



Security policy



Delivery policy



Return policy

The Hi-Link HLK series (including HLK-PM01 5 V, HLK-PM03 3.3 V, and HLK-PM12 12 V variants) are miniature encapsulated AC-DC switching power modules that provide regulated DC outputs directly from a 100 – 240 V AC mains input.
These compact modules are designed for direct PCB integration, eliminating the need for bulky external transformers, rectifiers, and regulators in low-power designs.

With output powers from 3 W to 5 W, the HLK-PM series delivers a high-efficiency (> 80 %) isolated output, suitable for microcontrollers, sensors, relays, and communication modules. Built with a reinforced 3 kV isolation barrier, they ensure operator safety and circuit protection from electrical surges.

Encapsulated in a flame-retardant (UL94 V-0) plastic case, these modules are resistant to moisture, dust, and vibration. The HLK family includes protection against over-current, over-temperature, and short-circuit conditions.
Certified for CE, UL, and EN 60950 / 62368-1, they meet international safety and EMI standards (EN55032 Class B), making them suitable for commercial, industrial, and household electronics.

Common applications include IoT nodes, smart home devices, Wi-Fi modules (ESP8266 / ESP32), industrial sensors, control panels, and automation controllers where compact, reliable DC power is required.

⚙️ Technical Highlights

Specification Description
Model HLK-PM Series (e.g., HLK-PM01 / HLK-PM03 / HLK-PM12)
Manufacturer Hi-Link
Input Voltage 100 – 240 V AC, 50 / 60 Hz
Output Voltage 3.3 V / 5 V / 12 V DC (depending on model)
Output Current Up to 600 mA (3.3 V) / 1 A (5 V) / 420 mA (12 V)
Output Power 3 – 5 W
Efficiency Up to 80 %
Isolation Voltage 3 kVAC
Protection Short-Circuit, Overload, Over-Temperature
Safety Standards CE, UL, EN60950 / EN62368-1
EMC Compliance EN55032 Class B
Case Material Flame-Retardant Plastic (UL94 V-0)
Dimensions ~33 × 19 × 15 mm
Operating Temp. −20 °C to +60 °C
Mounting PCB Mount
Cooling Convection

🔧 Features

  • Compact encapsulated AC-DC converter (3 – 5 W)

  • Wide 100 – 240 V AC input, universal operation

  • High efficiency and low no-load power

  • Reinforced 3 kVAC isolation barrier

  • Built-in over-load, short-circuit, and over-temp protection

  • Fully enclosed flame-retardant housing

  • CE / UL certified for industrial and consumer use

  • Drop-in replacement for discrete SMPS circuits

🏭 Typical Applications

  • IoT controllers and sensor nodes

  • Wi-Fi / Bluetooth devices (ESP8266, ESP32)

  • Smart home and automation modules

  • Industrial control boards

  • Test equipment and embedded systems

  • Low-power DC electronics and adapters
