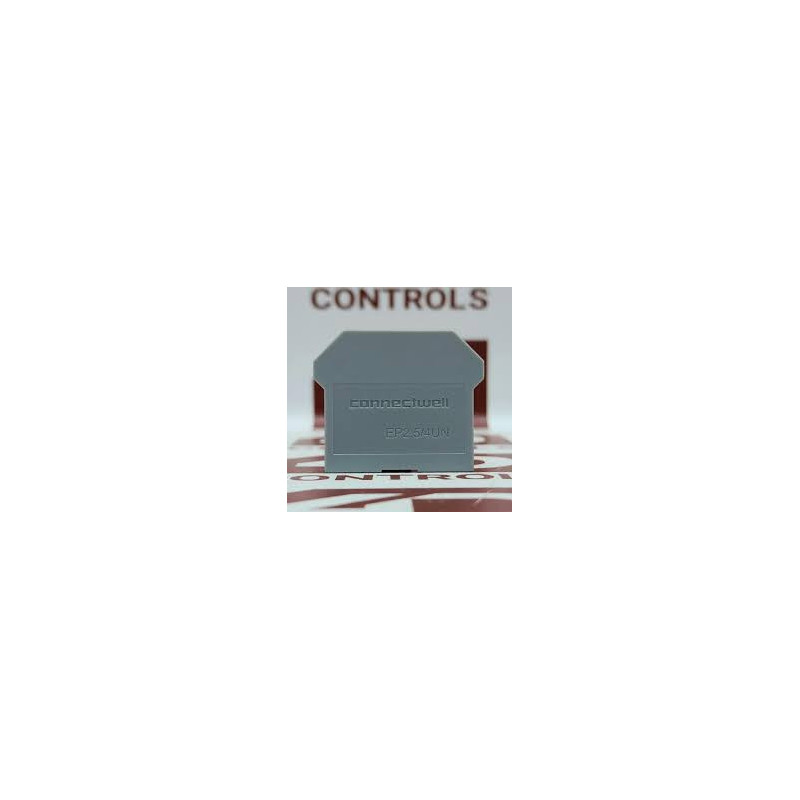

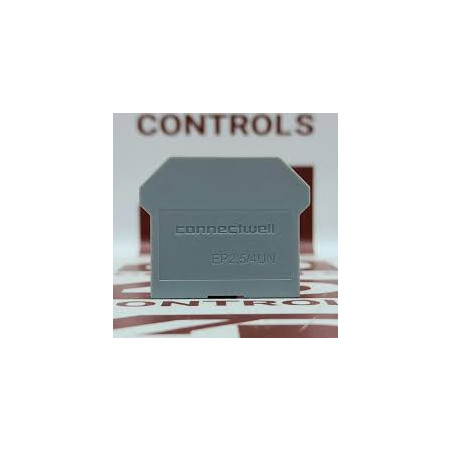

Connectwell EP2.5/4UN – End Plate for 2.5 mm & 4 mm Terminal Blocks
₹11.80
₹11.80 /Unit
Tax included
The Connectwell EP2.5/4UN is a precision-moulded end plate designed to provide safe and neat termination for 2.5 mm and 4 mm feed-through terminal blocks mounted on DIN rails. It ensures electrical isolation and mechanical support for the last terminal in a series, preventing short-circuits and maintaining panel aesthetics. Made from self-extinguishing PA 6.6 material with a UL 94 V-0 flammability rating, the EP2.5/4UN offers excellent durability, chemical resistance, and dimensional stability. Its snap-fit design allows quick installation on DIN 35 mm rails without tools, making it ideal for use in industrial control panels and automation systems.
Security policy
Delivery policy
Return policy
The Connectwell EP2.5/4UN End Plate is a reliable accessory used to close open sides of terminal blocks mounted on DIN rails, ensuring electrical safety and a professional panel appearance. Designed specifically for CT2.5 and CT4 series feed-through terminal blocks, it provides mechanical stability and insulation between adjacent components in control and distribution panels.
Constructed from high-quality PA 6.6 polyamide, the EP2.5/4UN offers excellent resistance to heat, chemicals, and vibration. Its precise fit and snap-on mounting mechanism allow quick assembly without special tools. The non-conductive material prevents accidental contact with live parts and ensures compliance with international electrical safety standards.
The end plate’s 6 mm width is optimized to match Connectwell terminal blocks, maintaining a uniform and professional appearance throughout the panel. It is typically used at the end of each terminal block row to seal the assembly before adding the end clamp (e.g., Connectwell CA702 or CA502).
In addition to mechanical protection, the EP2.5/4UN enhances the overall reliability of electrical installations by reducing the risk of short circuits and maintaining clear terminal identification lines. It is an indispensable accessory for OEMs, panel builders, and system integrators seeking durable and cost-effective solutions for control wiring organization.
⚙️ Technical Highlights
| Specification | Description |
|---|---|
| Model | EP2.5/4UN |
| Manufacturer | Connectwell |
| Type | End Plate for Terminal Blocks |
| Compatible Terminal Blocks | CT2.5 and CT4 Series |
| Material | PA 6.6 (Polyamide) |
| Width | 6 mm |
| Mounting Type | DIN 35 mm Snap-Fit |
| Color | Light Grey (RAL 7035) |
| Operating Temperature | −25 °C to +90 °C |
| Flammability Rating | UL 94 V-0 |
| Resistance | Oil, Chemical, and Vibration Resistant |
| Country of Origin | India |
🔧 Features
-
Snap-fit design for tool-free mounting on DIN 35 mm rails
-
Made from flame-retardant, high-strength PA 6.6 material
-
Provides electrical isolation and mechanical support
-
Compatible with Connectwell CT2.5 and CT4 series blocks
-
Maintains a neat and safe panel layout
-
Resistant to industrial heat and chemical exposure
-
UL 94 V-0 rated for fire safety
