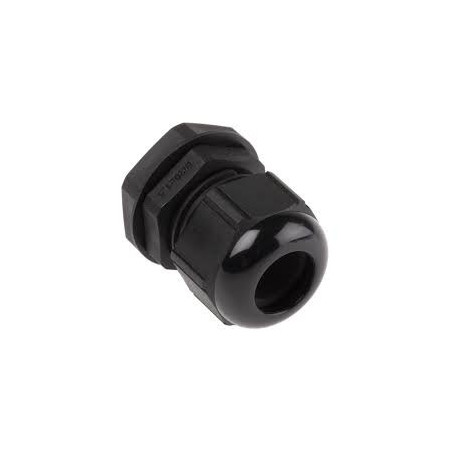

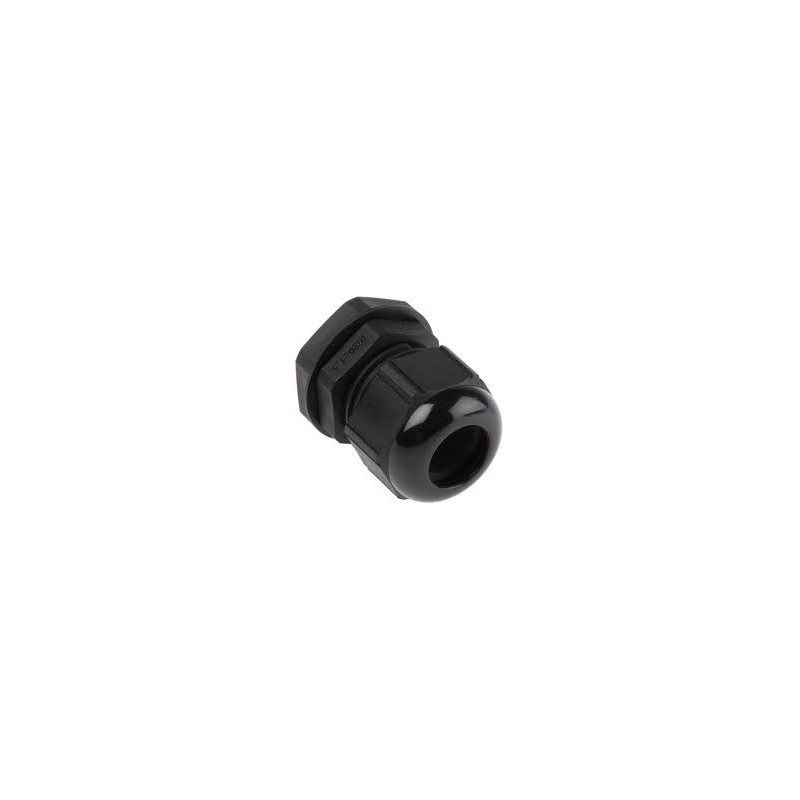

Cable Gland M20 × 1.5 – Black Nylon Waterproof Strain Relief Connector
₹23.60
₹23.60 /Unit
Tax included
The M20 × 1.5 Black Cable Gland is a high-quality nylon (PA66) waterproof gland designed to provide secure cable entry and strain relief for electrical enclosures, junction boxes, and control panels. It ensures a tight, dust- and moisture-proof seal around cables, protecting against pull-out and vibration. The gland fits cables from 6 mm to 12 mm diameter and features an easy-to-tighten dome cap with rubber sealing insert. Ideal for industrial automation, outdoor equipment, and wiring assemblies, this M20 × 1.5 gland offers IP68 protection, chemical resistance, and long-term reliability.
Security policy
Delivery policy
Return policy
The M20 × 1.5 Black Cable Gland is an essential wiring accessory used to secure and protect cables as they pass through panels or enclosures. Constructed from high-strength PA66 nylon, the gland provides an excellent balance of mechanical durability, chemical resistance, and electrical insulation.
This gland features a metric M20 × 1.5 thread and accommodates cables with outer diameters ranging from 6 mm to 12 mm. The dome nut compression design ensures a firm 360-degree grip on the cable sheath while maintaining a watertight seal. The internal EPDM/NBR rubber sealing ring delivers outstanding resistance to moisture, oil, and dust ingress.
The M20 gland is rated IP68, making it suitable for both indoor and outdoor use in harsh industrial or marine environments. It can withstand exposure to UV, oil, and temperature extremes while maintaining its clamping performance.
Commonly installed in electrical control panels, junction boxes, PLC enclosures, and field sensor housings, this cable gland is fully compatible with plastic, metal, and composite panels. It meets the requirements of EN 50262 and IEC 60529, ensuring reliable strain relief and sealing performance across automation, instrumentation, and power-distribution systems.
⚙️ Technical Highlights
| Specification | Description |
|---|---|
| Product Type | Cable Gland (Metric Thread) |
| Thread Size | M20 × 1.5 |
| Cable Diameter Range | 6 mm – 12 mm |
| Material | Nylon PA66 (Polyamide) |
| Sealing Material | EPDM / NBR Rubber |
| Color | Black (RAL 9005) |
| Thread Type | Metric ISO Pitch 1.5 mm |
| Protection Rating | IP68 (when properly installed) |
| Operating Temperature | −40 °C to +100 °C |
| Tensile Strength | High strain relief |
| Flammability Rating | UL 94 V-2 |
| Installation Type | Panel / Enclosure Mount |
| Locknut | Included |
| Country of Origin | India / OEM Imported |
🔧 Features
-
Durable PA66 nylon body with EPDM seal
-
IP68 waterproof and dust-proof protection
-
Wide clamping range (6 – 12 mm)
-
Corrosion-resistant and UV-stable black finish
-
Anti-vibration strain relief design
-
Easy installation with included locknut
-
Complies with EN 50262 / IEC 60529 standards
-
Ideal for industrial and outdoor wiring applications
🏭 Typical Applications
-
Electrical and automation control panels
-
Field junction boxes and sensor enclosures
-
Machine and motor terminals
-
Solar PV and outdoor equipment connections
-
Marine and industrial lighting systems
-
Instrumentation and power distribution cabinets
