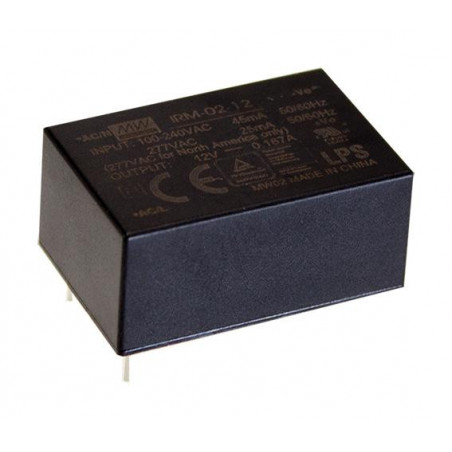

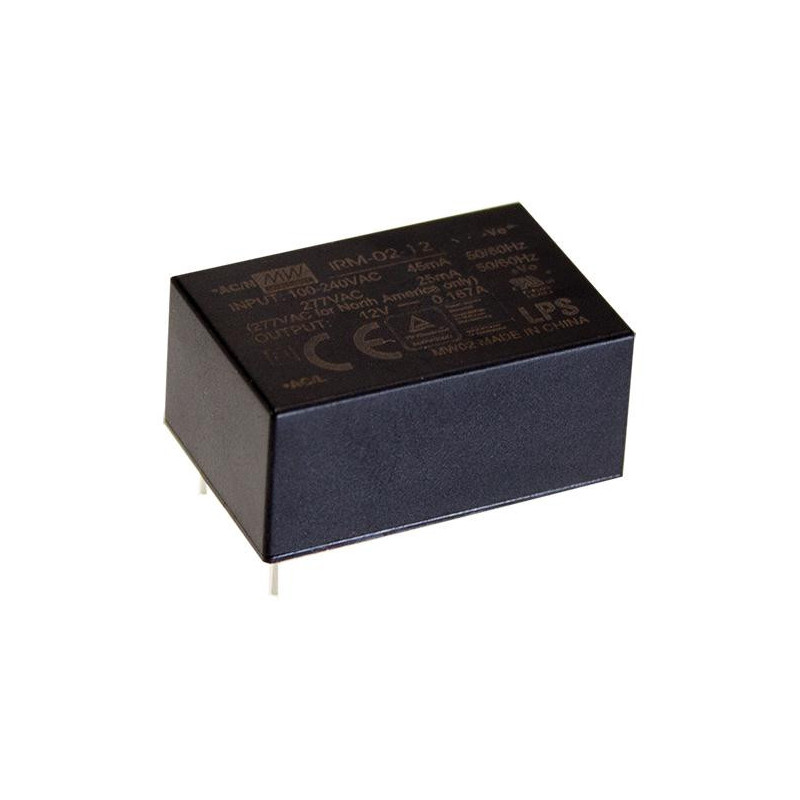

MEAN WELL IRM-02-24 – 2 W Isolated AC-DC Power Supply Module (24 V DC Output)
₹545.16
₹545.16 /Unit
Tax included
The MEAN WELL IRM-02-24 is an ultra-compact 2 W encapsulated AC-DC power supply module that provides a stable 24 V DC output from a universal 85 – 264 VAC input. Designed for PCB mounting, it offers high efficiency, Class II double insulation, and 3 kVAC isolation for industrial and consumer electronics applications. Fully encapsulated for protection against moisture and dust, the IRM-02-24 complies with IEC/EN/UL 62368-1 and EN55032 Class B EMC standards. It’s ideal for powering sensors, relays, IoT devices, and compact automation modules where board space and reliability are critical.
Security policy
Delivery policy
Return policy
The MEAN WELL IRM-02-24 is a 2-watt miniature AC-DC converter that delivers a regulated 24 V DC output for low-power embedded and industrial electronics. Part of MEAN WELL’s IRM series, it integrates high-efficiency power conversion and comprehensive protections into a fully encapsulated, compact plastic case suitable for direct PCB mounting.
It operates from a universal 85 – 264 VAC input (or 120 – 370 VDC), supporting global mains standards. The IRM-02-24 offers reinforced 3 kVAC isolation and Class II double insulation, eliminating the need for an external earth ground. With up to 78 % efficiency and < 0.1 W no-load power consumption, it meets the requirements of energy-saving designs.
Encapsulated in a UL94 V-0 flame-retardant plastic case, the module is resistant to moisture, dust, and vibration. Built-in protections include short-circuit and over-load safeguards, ensuring reliable long-term operation in critical systems.
The IRM-02-24 is certified to IEC/EN/UL 62368-1 safety standards and meets EMC requirements per EN55032 Class B for conducted and radiated emissions. Its tiny 36.5 × 27.2 × 17.1 mm package fits easily into tight board layouts, making it perfect for sensor nodes, IoT devices, industrial controllers, and measurement equipment.
⚙️ Technical Highlights
| Specification | Description |
|---|---|
| Model | IRM-02-24 |
| Manufacturer | MEAN WELL |
| Output Power | 2 W |
| Output Voltage | 24 V DC |
| Output Current | 0.084 A |
| Input Voltage Range | 85 – 264 VAC / 120 – 370 VDC |
| Efficiency | Up to 78 % |
| Isolation Voltage | 3 kVAC |
| Protection | Short-Circuit, Over-Load |
| Safety Standards | IEC/EN/UL 62368-1 |
| EMC Compliance | EN55032 Class B |
| Case Material | Encapsulated Plastic (UL94 V-0) |
| Dimensions | 36.5 × 27.2 × 17.1 mm |
| Operating Temp. | −30 °C to +70 °C |
| Mounting | PCB Mount |
| Cooling | Convection |
| Weight | ≈ 35 g |
🔧 Features
-
Ultra-compact 2 W AC-DC converter with 24 V output
-
Universal AC/DC input range for worldwide use
-
High efficiency with very low no-load power consumption
-
3 kVAC reinforced isolation (Class II safety)
-
Encapsulated for dust and moisture protection
-
Built-in short-circuit and overload protection
-
Complies with EN55032 Class B EMC standards
-
Long operating life and maintenance-free design
🏭 Typical Applications
-
IoT sensors and wireless modules
-
Industrial controllers and PLC inputs
-
Smart building automation devices
-
Instrumentation and measurement equipment
-
Low-power embedded electronics
-
Consumer and home automation systems
