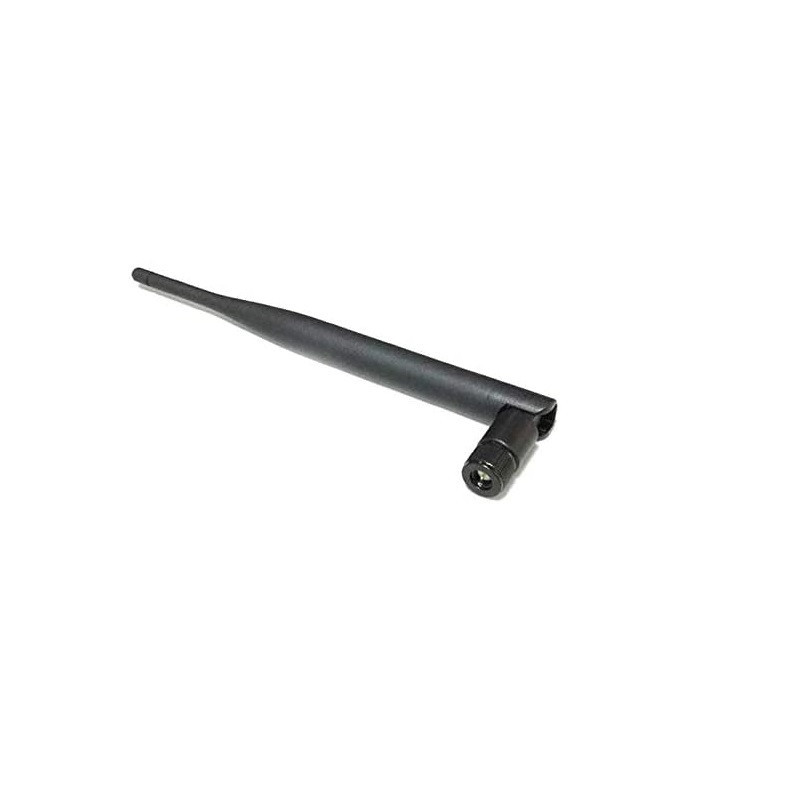

Dual Band 3G / 4G LTE Antenna – 698-960 MHz & 1710-2690 MHz, 5 dBi Gain
₹234.82
₹234.82 /Unit
Tax included
The Dual Band 3G / 4G LTE Antenna operates across 698–960 MHz and 1710–2690 MHz, providing a strong and stable wireless signal for GSM, LTE, and IoT communication devices. With a 5 dBi high-gain omni-directional design, it enhances signal strength and data transmission for routers, modems, gateways, and cellular modules such as SIM800, SIM7600, EC25, and LoRaWAN nodes. The antenna includes an SMA-Male connector and a flexible base for optimal orientation, ensuring superior performance across 2G, 3G, 4G LTE, and NB-IoT networks.
Security policy
Delivery policy
Return policy
The 698-960 MHz and 1710-2690 MHz Dual Band LTE Antenna is an industrial-grade antenna designed for enhanced cellular connectivity across global 2G, 3G, and 4G LTE frequency bands. With a 5 dBi omni-directional gain, it significantly improves signal strength, stability, and throughput in areas with weak or fluctuating cellular reception.
This antenna covers two major frequency ranges —
-
698–960 MHz: suitable for GSM / 3G bands (B5, B8, etc.)
-
1710–2690 MHz: compatible with LTE / 4G bands (B1, B3, B7, B20, etc.)
It is fully compatible with most cellular modems, routers, IoT gateways, and telemetry modules, including SIMCOM (SIM7600, SIM800), Quectel (EC25, EC20), u-blox (SARA-R4, LARA), and ESP32-LTE development boards.
The antenna features a standard SMA-Male connector, ensuring easy connection to RF modules or pigtail cables. The pivoting swivel base allows users to adjust the antenna angle for maximum signal reception. The housing is made from ABS plastic with an internal high-efficiency radiator element, ensuring durability and long-term outdoor or indoor use.
Typical applications include IoT gateways, telemetry systems, data loggers, industrial PLC modems, GSM/4G routers, and environmental monitoring devices requiring reliable cellular communication.
⚙️ Technical Highlights
| Specification | Description |
|---|---|
| Product Type | Dual Band 3G / 4G LTE Antenna |
| Frequency Range | 698–960 MHz / 1710–2690 MHz |
| Supported Bands | GSM / 3G / 4G LTE / NB-IoT |
| Gain | 5 dBi |
| Polarization | Vertical |
| Radiation Pattern | Omni-directional |
| VSWR | ≤ 2.0 |
| Impedance | 50 Ω |
| Connector Type | SMA-Male (standard) |
| Cable Length | Optional (direct mount / with 1 m extension) |
| Material | ABS Housing with internal radiator |
| Mounting Type | Direct SMA mount / Magnetic / Bracket (as per variant) |
| Operating Temperature | −40 °C to +80 °C |
| Color | Black |
| Protection | IP65 (typical, depending on variant) |
| Country of Origin | China / India (OEM) |
🔧 Features
-
Wide frequency coverage: 698–960 MHz & 1710–2690 MHz
-
5 dBi high-gain omni-directional radiation pattern
-
Compatible with GSM, 3G, 4G LTE, and NB-IoT networks
-
SMA-Male connector for easy integration with modems and gateways
-
Adjustable swivel base for optimum alignment
-
Durable ABS housing for indoor or outdoor use
-
Low VSWR ensures efficient RF performance
-
Ideal for IoT, telemetry, and industrial communication applications
🏭 Typical Applications
-
3G/4G LTE routers and modems
-
GSM and NB-IoT telemetry devices
-
Industrial IoT gateways and PLCs
-
LoRaWAN-LTE hybrid communication nodes
-
Smart metering and environmental monitoring systems
-
Cellular-based data loggers and remote equipment
Dimension (mm)- 195 x 15
Housing- Plastic / Black
Weight(g )- 50
102610
