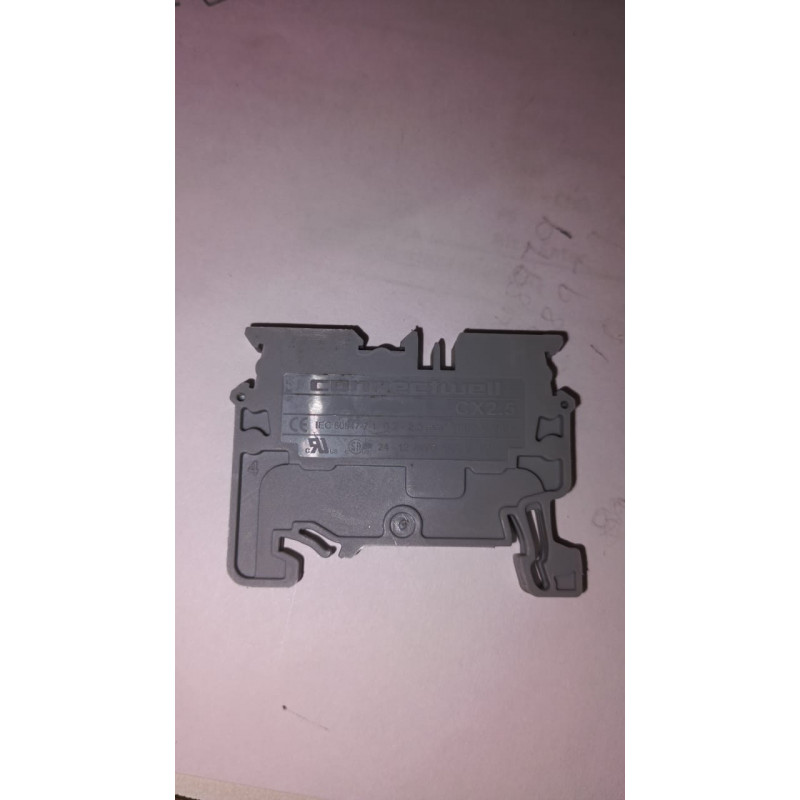

Connectwell CX2.5 – 2.5 mm² Feed-Through Spring Clamp Terminal Block
search
  • Connectwell CX2.5 – 2.5 mm² Feed-Through Spring Clamp Terminal Block
  • Connectwell CX2.5 – 2.5 mm² Feed-Through Spring Clamp Terminal Block

Connectwell CX2.5 – 2.5 mm² Feed-Through Spring Clamp Terminal Block

₹17.70

₹17.70 /Unit

Tax included

The Connectwell CX2.5 is a compact, maintenance-free spring-clamp feed-through terminal block designed for fast and vibration-proof wiring in industrial control panels. It accommodates conductors up to 2.5 mm² (14 AWG) and mounts on standard DIN 35 mm rails. Using a stainless-steel spring mechanism, it provides secure tool-free connections and consistent clamping force over time—ideal for automation, PLC, and instrumentation wiring. The CX2.5’s flame-retardant PA 6.6 housing and tin-plated copper current bar ensure long service life, reliability, and compliance with global electrical standards.

Quantity



Security policy



Delivery policy



Return policy

The Connectwell CX2.5 is a high-performance spring-clamp feed-through terminal block that provides reliable and maintenance-free wire terminations in modern control and automation systems. Designed to handle conductor sizes up to 2.5 mm², it delivers the perfect balance of space efficiency, vibration resistance, and long-term electrical stability.

The innovative stainless-steel spring mechanism ensures uniform clamping pressure on the conductor, eliminating the need for retightening during maintenance cycles. This makes it particularly suitable for environments subject to continuous vibration or thermal cycling, such as process automation, machine tools, and power distribution cabinets.

Its housing is molded from self-extinguishing PA 6.6 polyamide, rated UL 94 V-0 for flame retardance and high mechanical strength. The current bar is made of tin-plated copper alloy, providing excellent conductivity and corrosion resistance. The CX2.5 easily mounts on DIN 35 mm symmetrical rails and supports all standard Connectwell accessories such as end clamps (CA502/CA702), jumper bars (CAJ2.5 series), end plates (EP2.5/4UN), and marker holders (GMH6-PA).

Compliant with IEC 60947-7-1 and UL 1059, the CX2.5 meets global safety and performance requirements for terminal blocks used in industrial and building automation systems. Its compact 6 mm width and ergonomic design allow dense wiring layouts without compromising accessibility.

⚙️ Technical Highlights

Specification Description
Model CX2.5
Manufacturer Connectwell
Type Feed-Through Terminal Block (Spring Clamp)
Connection Type Spring / Cage Clamp
Cross-Section Capacity 0.5 – 2.5 mm² (22 – 14 AWG)
Rated Voltage 800 V
Rated Current 24 A
Mounting Type DIN 35 mm rail
Material PA 6.6 (Polyamide)
Current Bar Material Tin-Plated Copper Alloy
Flammability Rating UL 94 V-0
Color Grey (RAL 7035)
Operating Temperature −25 °C to +100 °C
Standards IEC 60947-7-1 / UL 1059
Compatible Accessories CA502, CA702, EP2.5/4UN, CAJ2.5 Jumper Bar, GMH6-PA Marker Holder
Country of Origin India

🔧 Features

  • Quick, tool-free wiring using spring-clamp technology

  • Maintenance-free and vibration-resistant design

  • Compact 6 mm width for dense panel layouts

  • UL 94 V-0 flame-retardant PA 6.6 housing

  • Tin-plated copper current bar for superior conductivity

  • Compatible with all Connectwell standard accessories

  • Meets IEC 60947-7-1 and UL 1059 international standards

🏭 Typical Applications

  • Industrial automation and control panels

  • PLC and I/O module wiring

  • Machine and process control systems

  • Building automation and lighting systems

  • Instrumentation and signal circuits

  • Power supply and distribution modules
