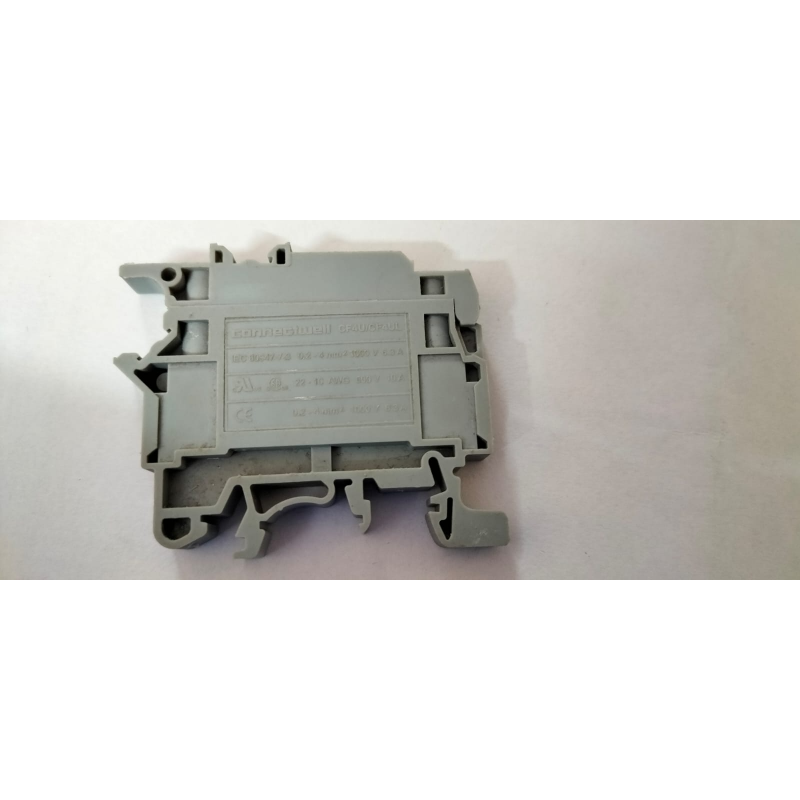

Connectwell CF4U – Single-Level Fuse Terminal Block with LED Indication
₹53.10
₹53.10 /Unit
Tax included
The Connectwell CF4U is a single-level fuse terminal block with built-in LED indication, designed for circuit protection and quick fault identification in control panels. It accommodates 5 × 20 mm glass fuses and supports wire sizes up to 4 mm² (12 AWG). When a fuse blows, the LED indicator instantly illuminates, allowing quick visual detection and reduced downtime. The CF4U mounts securely on standard DIN 35 mm rails, offering compact, safe, and organized wiring for industrial automation, PLC systems, and electrical distribution panels.
Security policy
Delivery policy
Return policy
The Connectwell CF4U Single-Level Fuse Terminal Block provides reliable overcurrent protection and quick fault identification in electrical control systems. It combines a fuse holder and terminal block into a compact design, simplifying wiring while enhancing system safety.
Designed to accept standard 5 × 20 mm glass fuses, the CF4U ensures secure fuse retention and reliable electrical contact. The integrated LED indication circuit provides instant visual feedback — when a fuse blows, the LED lights up, allowing maintenance personnel to quickly identify and replace the faulty fuse.
The CF4U supports conductors up to 4 mm² and uses a screw clamp connection, providing a vibration-resistant and maintenance-friendly termination. Constructed from self-extinguishing PA 6.6 (polyamide) with a UL 94 V-0 flammability rating, it ensures high dielectric strength, thermal stability, and resistance to industrial contaminants.
The internal current-carrying components are made of electro-tin-plated copper alloy, ensuring low contact resistance and long-term performance. The terminal block mounts easily on standard DIN 35 mm rails and is compatible with Connectwell end clamps (CA702 / CA502), jumper bars (CAJ4 series), and marker holders (GMH6-PA).
Fully compliant with IEC 60947-7-1 and UL 1059 standards, the CF4U is ideal for industrial control panels, automation systems, and machine control equipment where visual circuit protection is required.
⚙️ Technical Highlights
| Specification | Description |
|---|---|
| Model | CF4U |
| Manufacturer | Connectwell |
| Type | Single-Level Fuse Terminal Block with LED |
| Connection Type | Screw Clamp |
| Fuse Size | 5 × 20 mm Glass Fuse |
| Conductor Size | 0.5 – 4 mm² (22 – 12 AWG) |
| Rated Voltage | 800 V |
| Rated Current | 6.3 A (max. as per fuse rating) |
| LED Indication | On fuse failure (requires external supply) |
| Mounting Type | DIN 35 mm rail |
| Housing Material | PA 6.6 (Polyamide) |
| Flammability Rating | UL 94 V-0 |
| Color | Grey (RAL 7035) with LED Window |
| Operating Temperature | −25 °C to +100 °C |
| Standards | IEC 60947-7-1 / UL 1059 |
| Compatible Accessories | CA702 / CA502 End Clamp, EP2.5/4UN End Plate, GMH6-PA Marker Holder |
| Country of Origin | India |
🔧 Features
-
Combines fuse protection and terminal connection in one block
-
LED indicator for quick visual identification of blown fuses
-
Accepts standard 5 × 20 mm glass fuses
-
Compact, modular design for DIN 35 mm rails
-
Screw clamp connection for secure, vibration-proof wiring
-
Flame-retardant PA 6.6 housing (UL 94 V-0)
-
Compatible with standard Connectwell accessories
-
Meets IEC and UL international safety standards
🏭 Typical Applications
-
Control and automation panels
-
PLC and relay circuits
-
Instrumentation and signal protection
-
Machine and process control wiring
-
Electrical distribution and motor protection
-
Industrial and building automation systems
